3300MHz-3800MHz 10W Final Solution

應用方案 | 日期：2023-07-21 | 閱讀：

3300MHz-3600MHz 10W Final Solution(圖1)

Final:

DXG2PH36A-100N

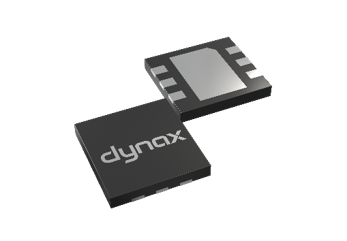

3300MHz-3600MHz 10W Final Solution(圖2)

Package Type:

DFN 7x6.5mm





CW Pulsed 10%


Modulated  Signal

Freq (MHz)

Psat (dBm)

Gp (dB)@41.3dBm

DE (%)@41.3dBm

ACLR (dBc)@ 41.3dBm

340050.415.853.4-30.0
350050.215.854.3-32.0
360050.015.253.6-33.0


Remark : Test  Condition

CW Pulsed: 10% Duty Cycle, 100uS Duration;

Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH;

Tested without isolator.
