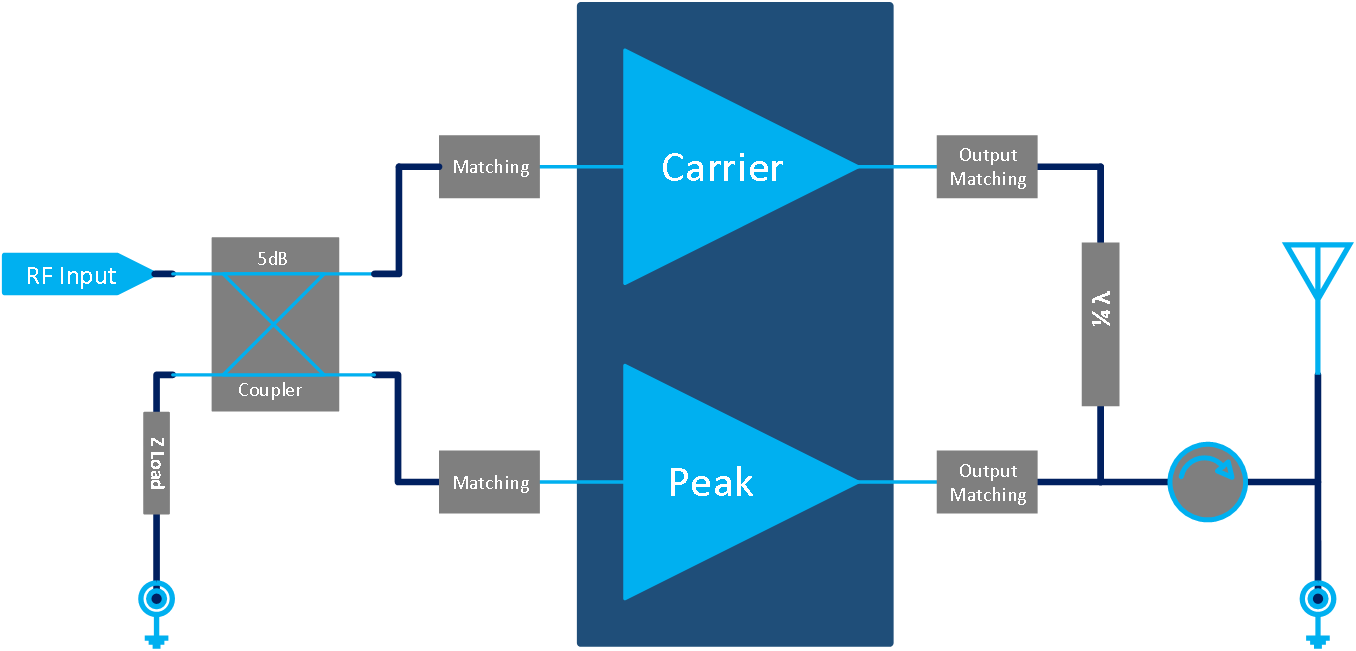

3400MHz-3600MHz 20W Final Solution

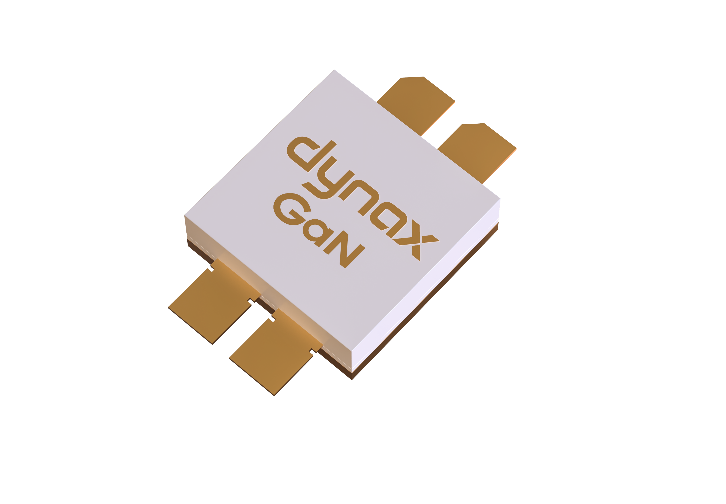

 | Final: DXG1CH38A-200EF |
 | |
Package Type: 780-4 |
CW Pulsed 10% | Modulated Signal | |||
Freq (MHz) | Psat (dBm) | Gp (dB)@44.1dBm | DE (%)@44.1dBm | ACLR (dBc)@ 44.1dBm |
3400 | 53.5 | 14.7 | 46.0 | -32.0 |
3500 | 53.7 | 15.0 | 46.5 | -35.0 |
| 3600 | 53.5 | 14.7 | 45.4 | -40.0 |
Remark : Test Condition CW Pulsed: 10% Duty Cycle, 100uS Duration; Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH; Tested without isolator. | ||||
